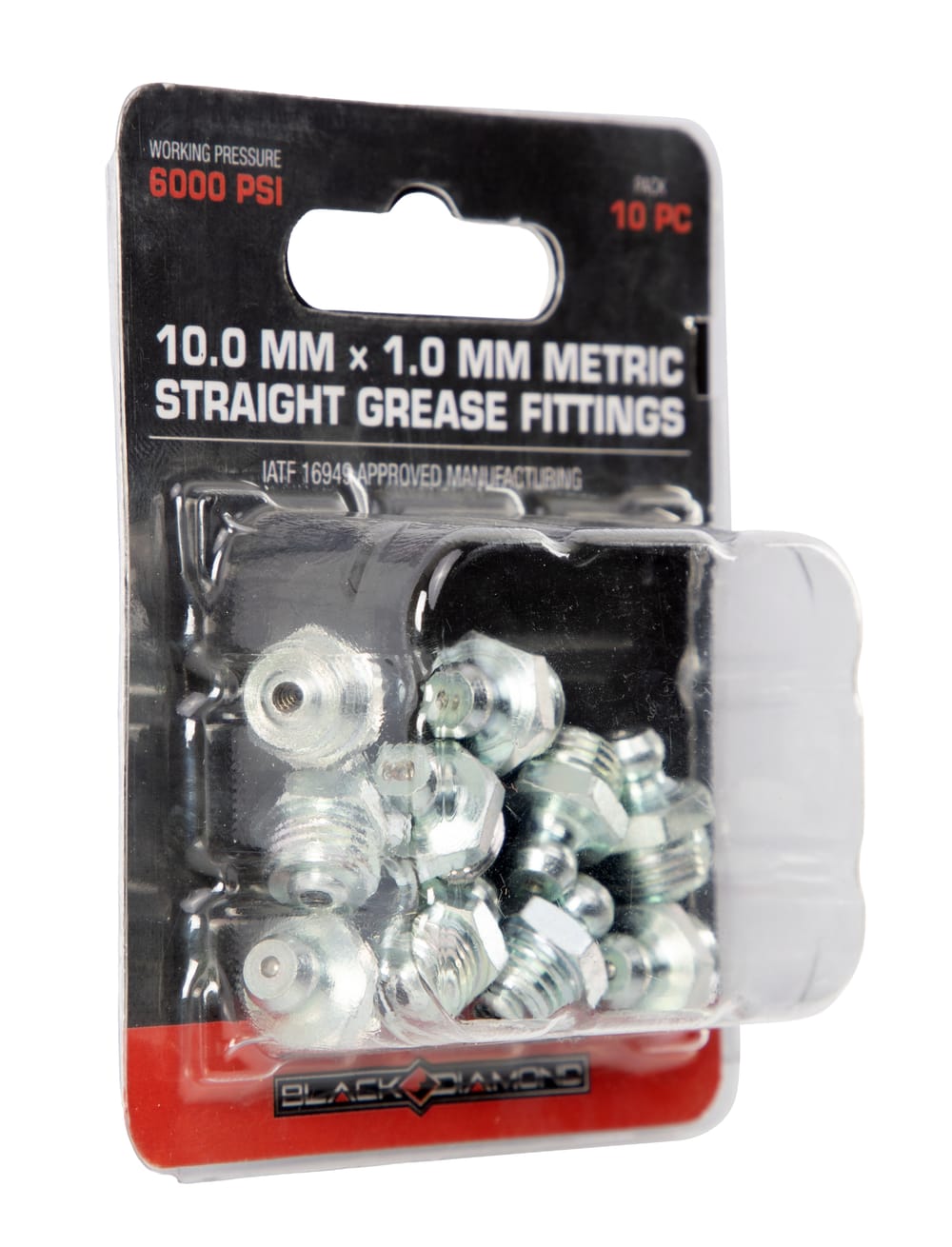

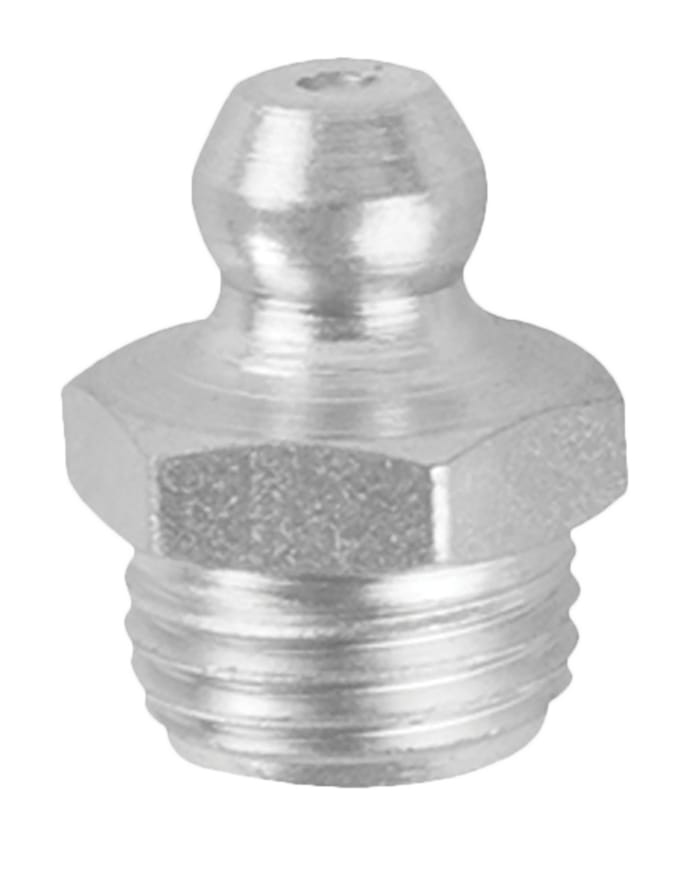

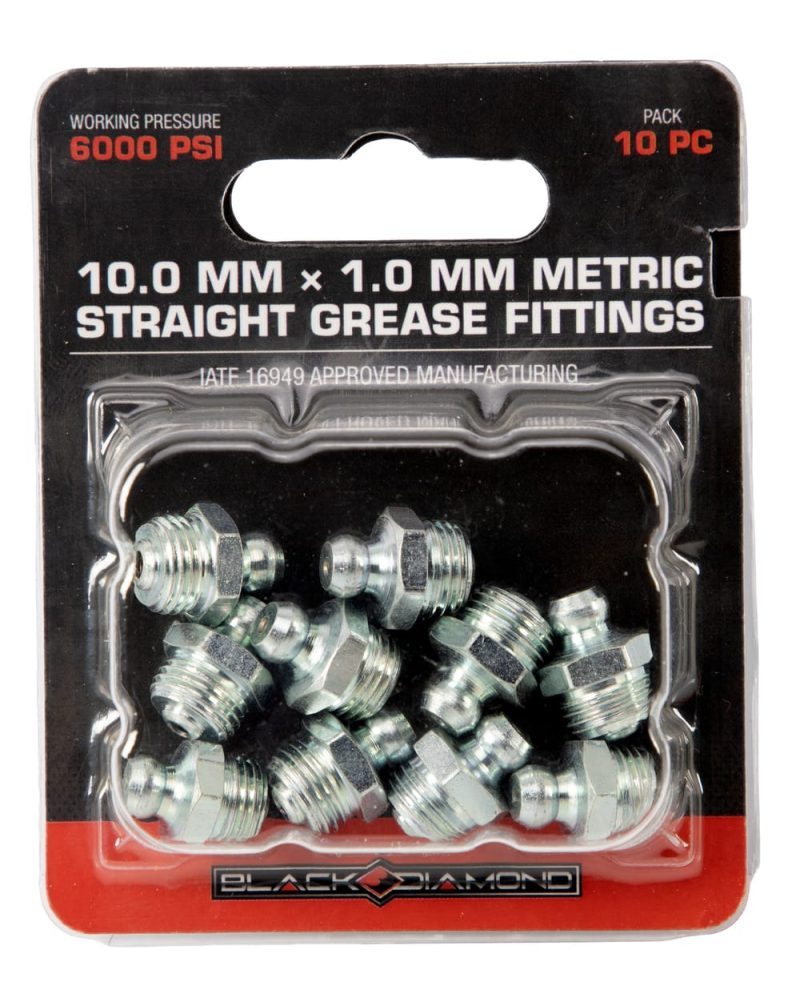

10.0 mm x 1.0 mm Metric Straight Grease Fittings
The Black Diamond™ 10.0 mm x 1.0 mm Metric Straight Grease Fittings are engineered for dependable, high-pressure lubrication applications up to 6,000 PSI. Manufactured from steel and heat treated to SAE J534 specifications, they feature a hardened greasing end for long service life and consistent performance. Each fitting includes a ball check and heat-treated spring, while the zinc-plated finish provides corrosion resistance and meets the SAE J534 specification. Sold in a convenient 10-piece pack, these fittings are precision-controlled to ensure accurate fit, reliable sealing, and long-lasting durability.
Working pressure: 6000 PSI
Pack: 10 PC
IATF 16949 approved manufacturing

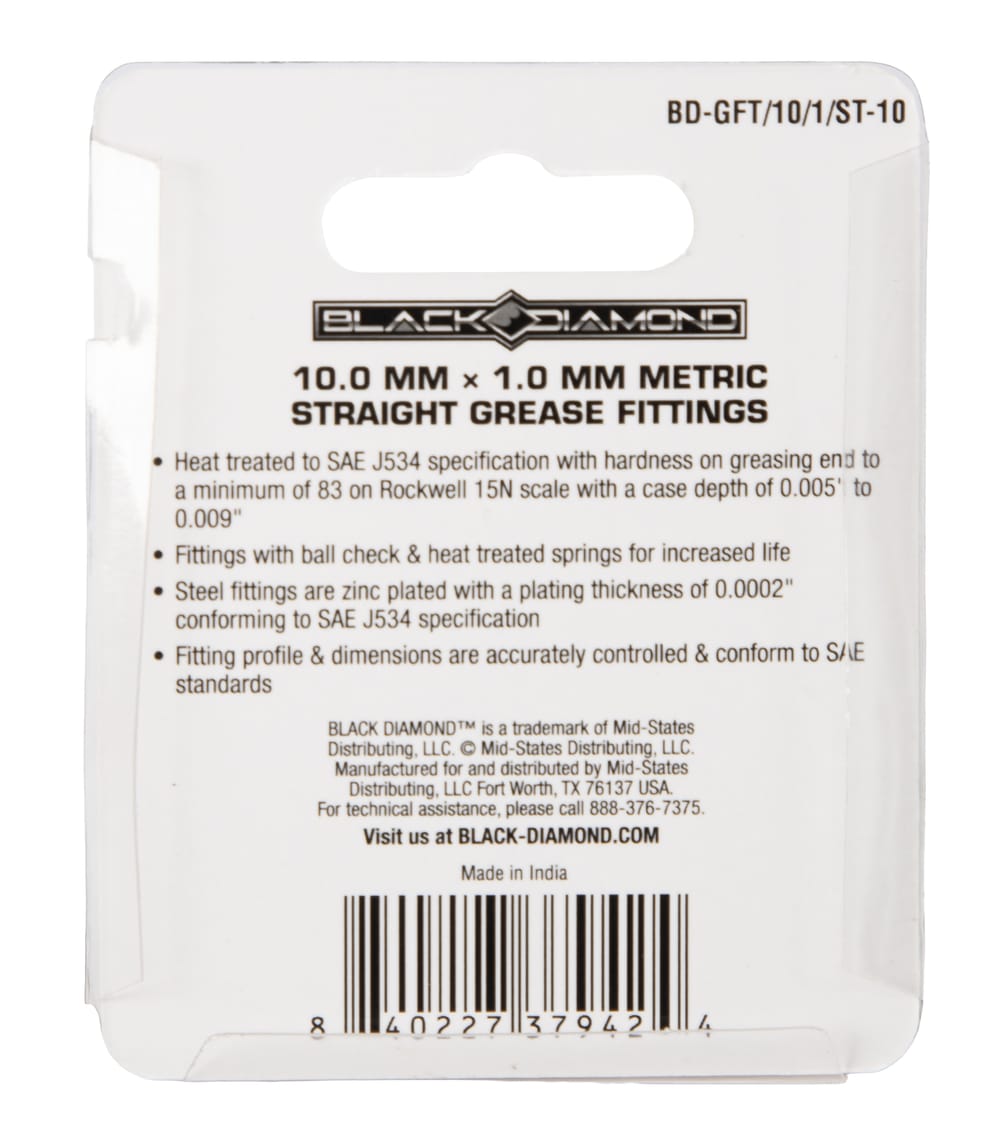

Heat treated to SAE J534 specification with hardness on greasing end to a minimum of 83 on Rockwell 15N scale with a case depth of 0.005" to
0.009"
Fittings with ball check & heat treated springs for increased life
conforming to SAE J534 specification
Fitting profile & dimensions are accurately controlled & conform to SAE standards
| Dimensions | 1.1 × 3 × 3.5 in |
|---|---|
| Color | Silver |
