BD201257

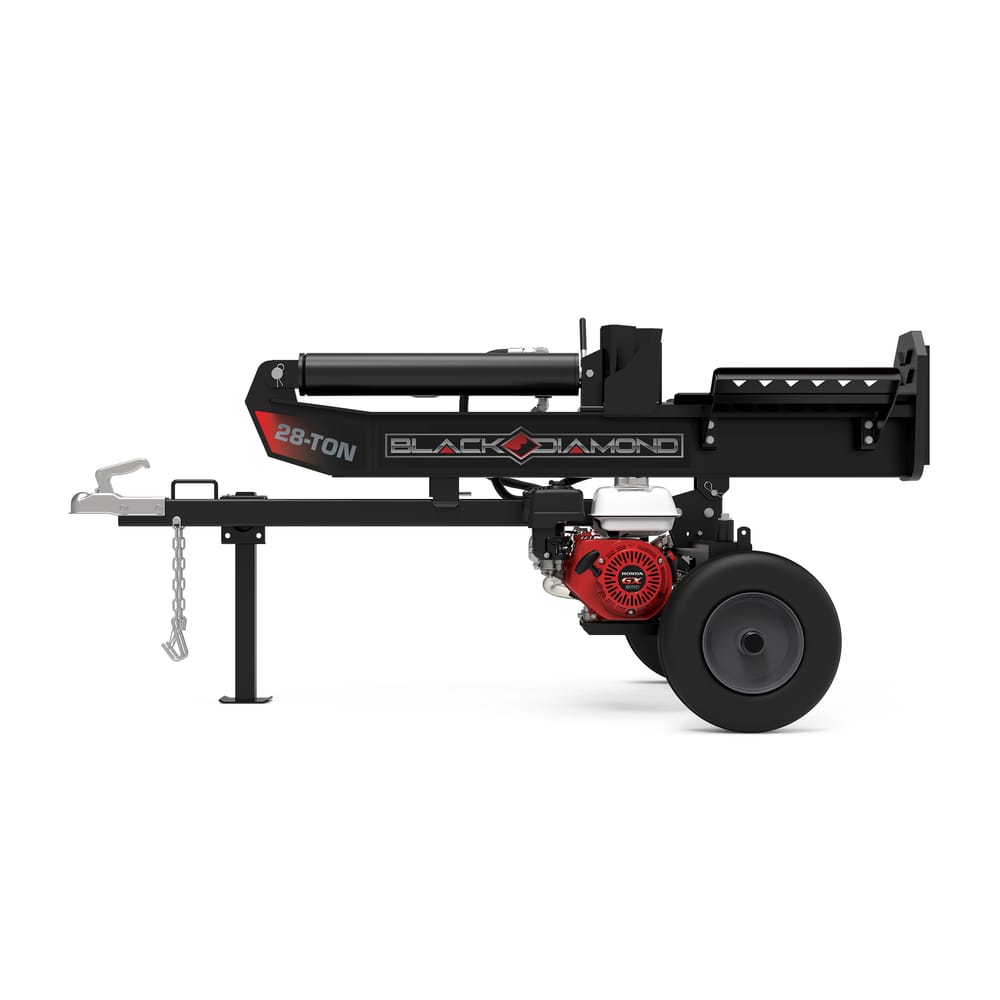

28-Ton Horizontal/Vertical Gas-Powered Log Splitter with Honda 196cc Engine

MSRP: $1,699.99*

The Black Diamond 28 Ton Horizontal/Vertical Gas-Powered Log Splitter with Honda 196cc Engine is built for efficient splitting and easy handling, featuring an 8-inch tapered splitting wedge and heavy duty steel log catchers to help keep work moving. A large, heavy duty, self-locking tow hitch handle and fold up front support leg with a spring loaded pin make transport and storage straightforward, while spring loaded auto lock and quick lock beam locks secure the unit in horizontal or vertical position. Setup is simplified with mistake free, easy to assemble hydraulic hoses, spring tension hose clamps for the suction hose, and a top mounted hydraulic fluid port and filter for easier maintenance.

[product_engine label="Engine Manual"]
Features & Benefits
  • Large, heavy duty, self-locking tow hitch handle
  • Fold up front support leg with spring loaded pin
  • Spring tension hose clamps for suction hose
  • Mistake free, easy to assemble hydraulic hoses
  • Top mounted hydraulic fluid port/filter for easy maintenance
  • 8-inch tapered spitting wedge for efficient splitting
  • Spring loaded auto lock horizontal beam lock
  • Spring loaded quick lock vertical beam lock
  • Heavy duty steel log catchers
  • Towable up to 45 mph
  • Operation: horizontal & vertical
  • Engine brand: recoil
  • Engine size: 196cc - Honda GX200
  • Beam style - full
  • Cycle time: 11 sec.
  • Max log length: 24 in.
  • Log catchers: yes - 2
  • Wedge type: 8 in. tapered
  • Pump stage/GPM: 2 stage / 13 gpm
  • Wheel size: 16 in. DOT 45 mph
Specifications
Dimensions 26.8 × 70.1 × 19.3 in
Color

Black

Country of Origin

China

WARNING: Cancer and Reproductive Harm. For more information go to www.P65Warnings.ca.gov.

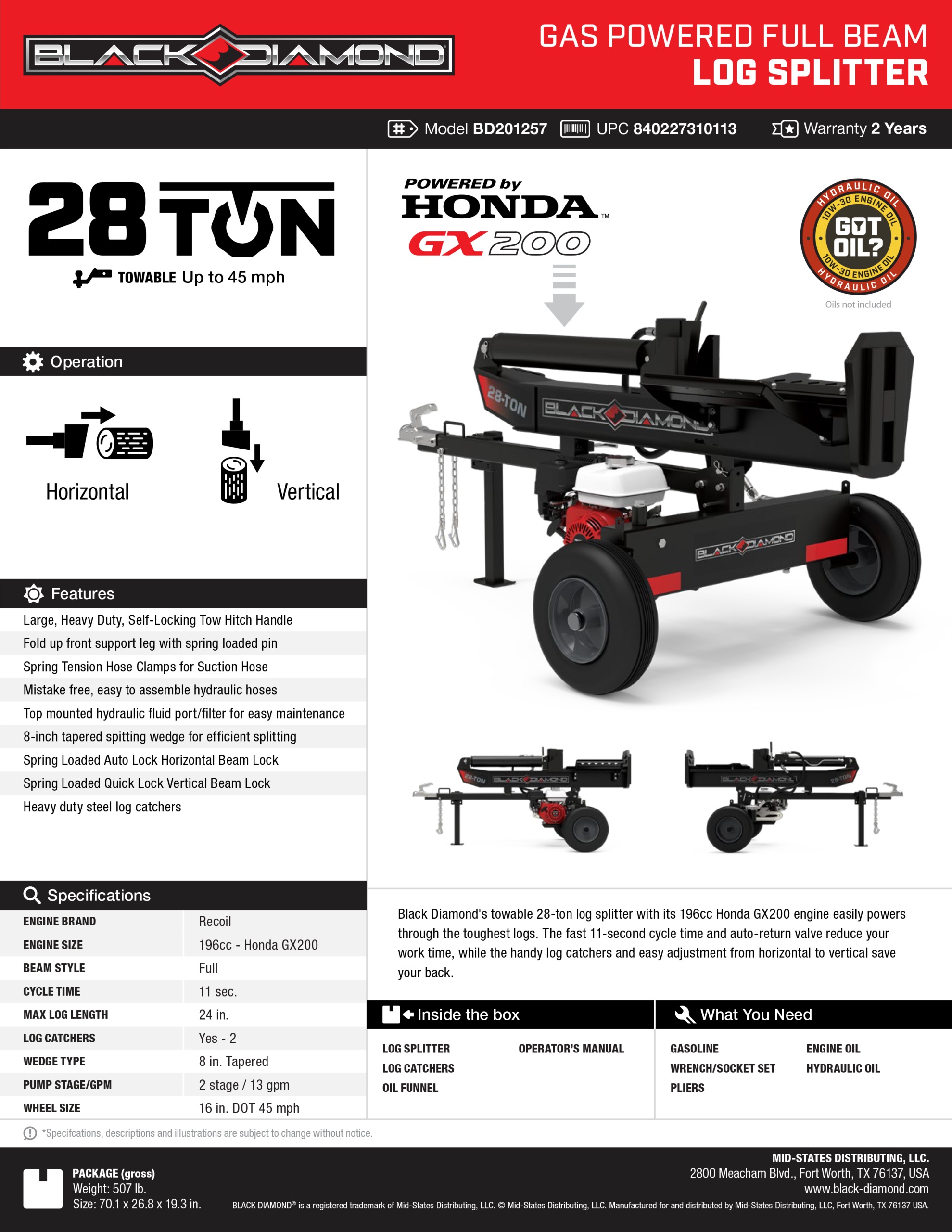

[product_sheet]
