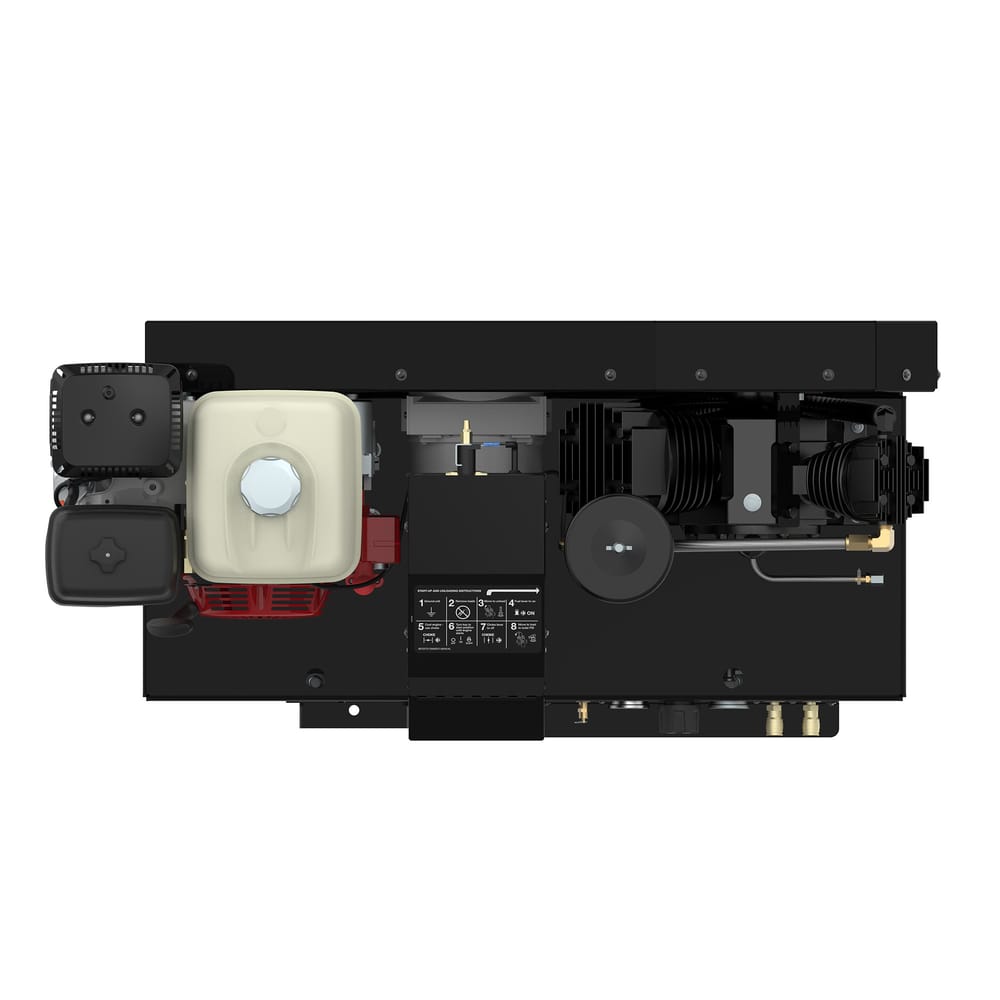

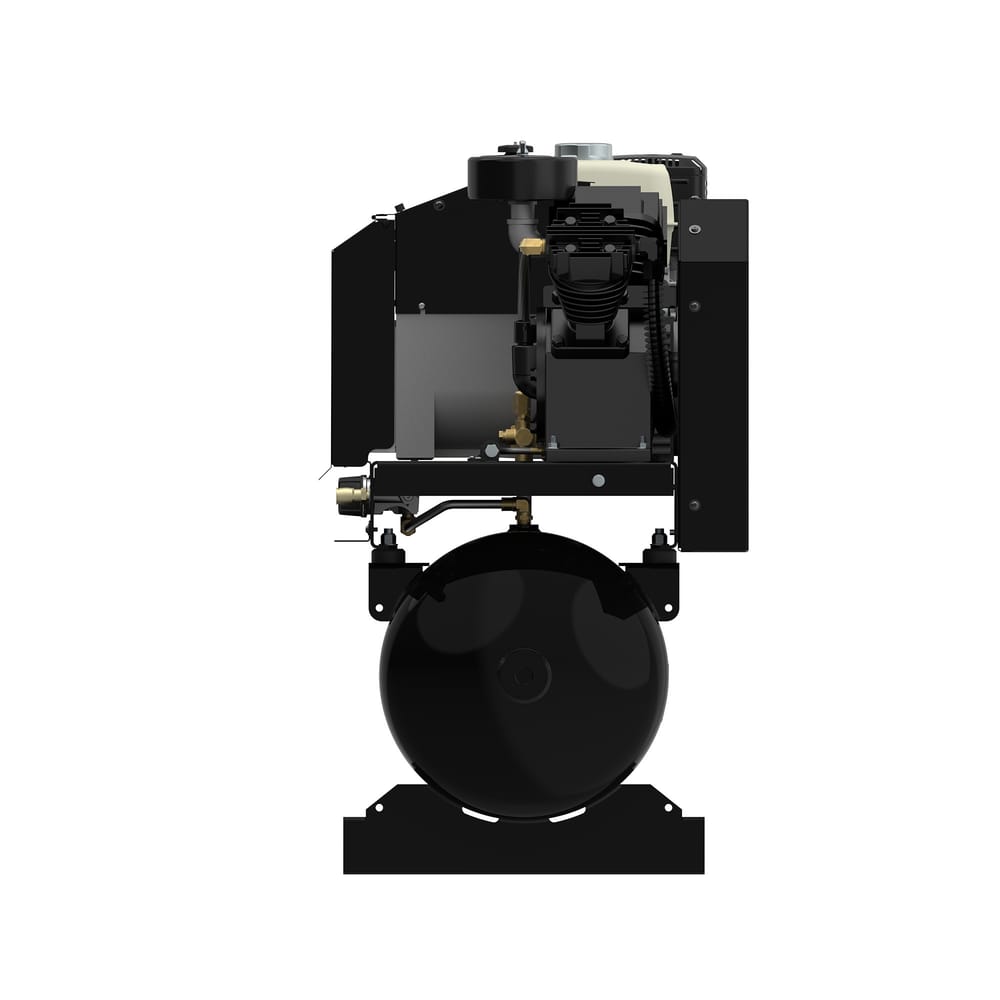

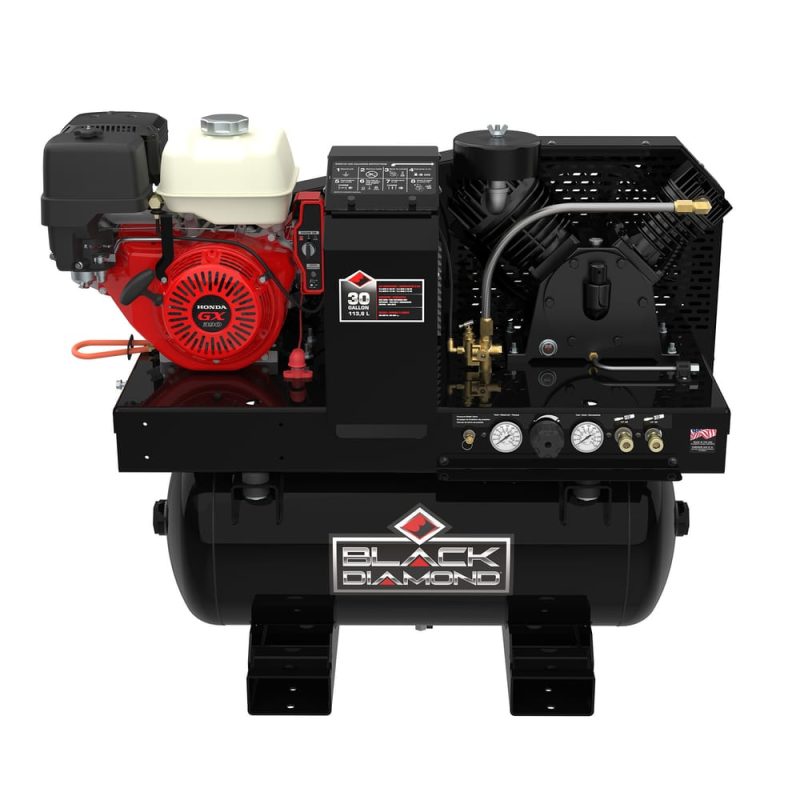

3-in-1 Air Compressor, Generator, Welder Combination

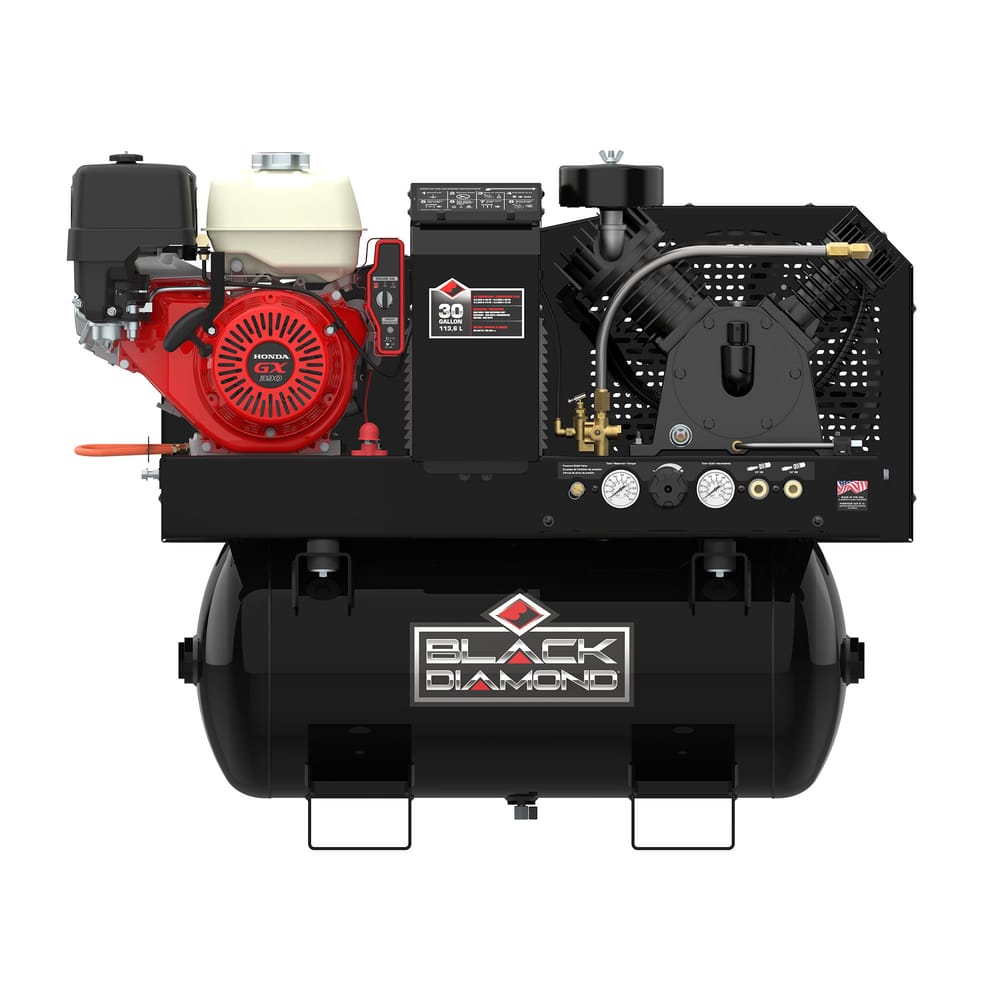

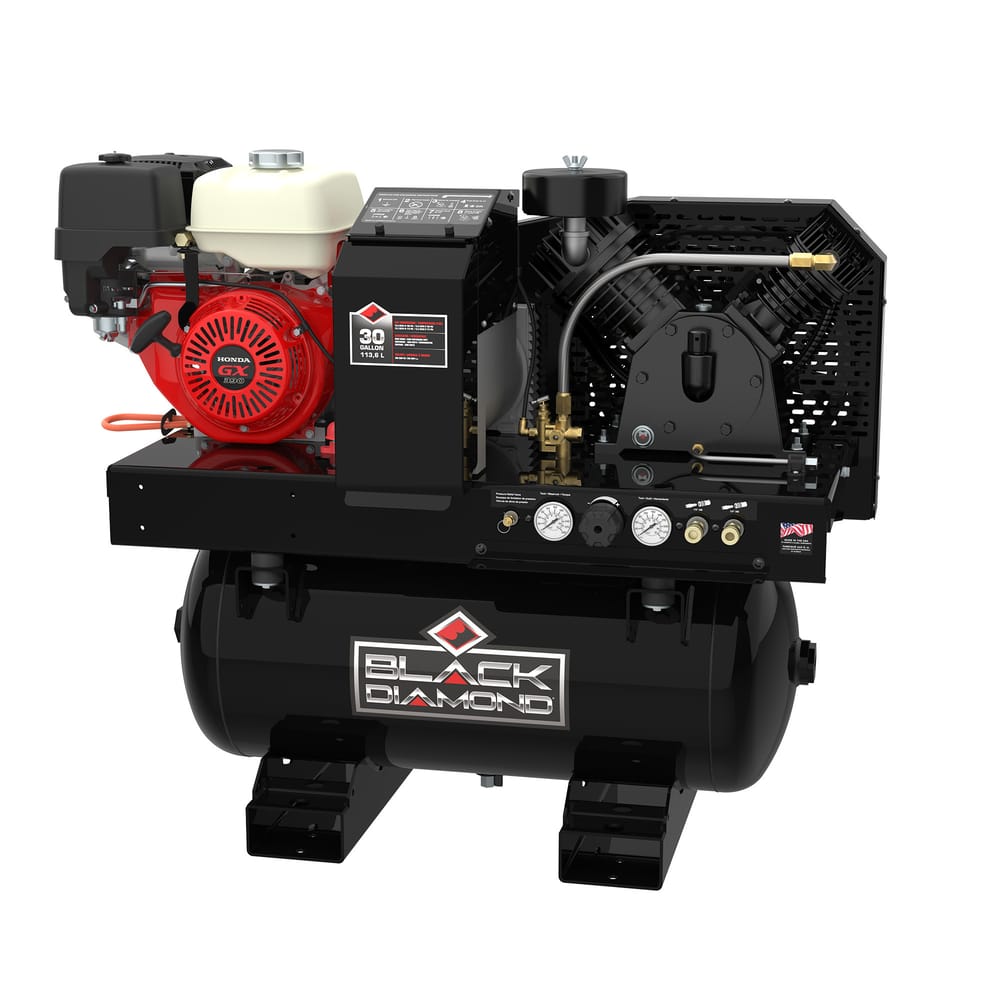

The Black Diamond® 3 in 1 Air Compressor, Generator, and Welder Combination is a rugged, all-in-one solution engineered for demanding jobsite and mobile applications where power, air, and welding capability are essential. Driven by a heavy-duty Honda GX390 OHV gas engine, this unit features a two-stage cast iron pump and a 30 gallon ASME truck mount style tank, delivering up to 175 PSI with exceptional airflow of 13.6 SCFM at 100 PSI and 13.3 SCFM at 175 PSI through dual 1/4″ air outlets. Integrated generator performance provides 5,500 continuous watts and 6,050 surge watts, with four 120V AC receptacles and one 240V AC receptacle for versatile power delivery. The built-in welder handles up to 1/2″ steel thickness, and supports a 60% duty cycle at 180A and 100% duty cycle at 150A, making this powerhouse ideal for construction, repair, and remote work environments where reliability and performance matter most.
Two-stage, cast iron pump

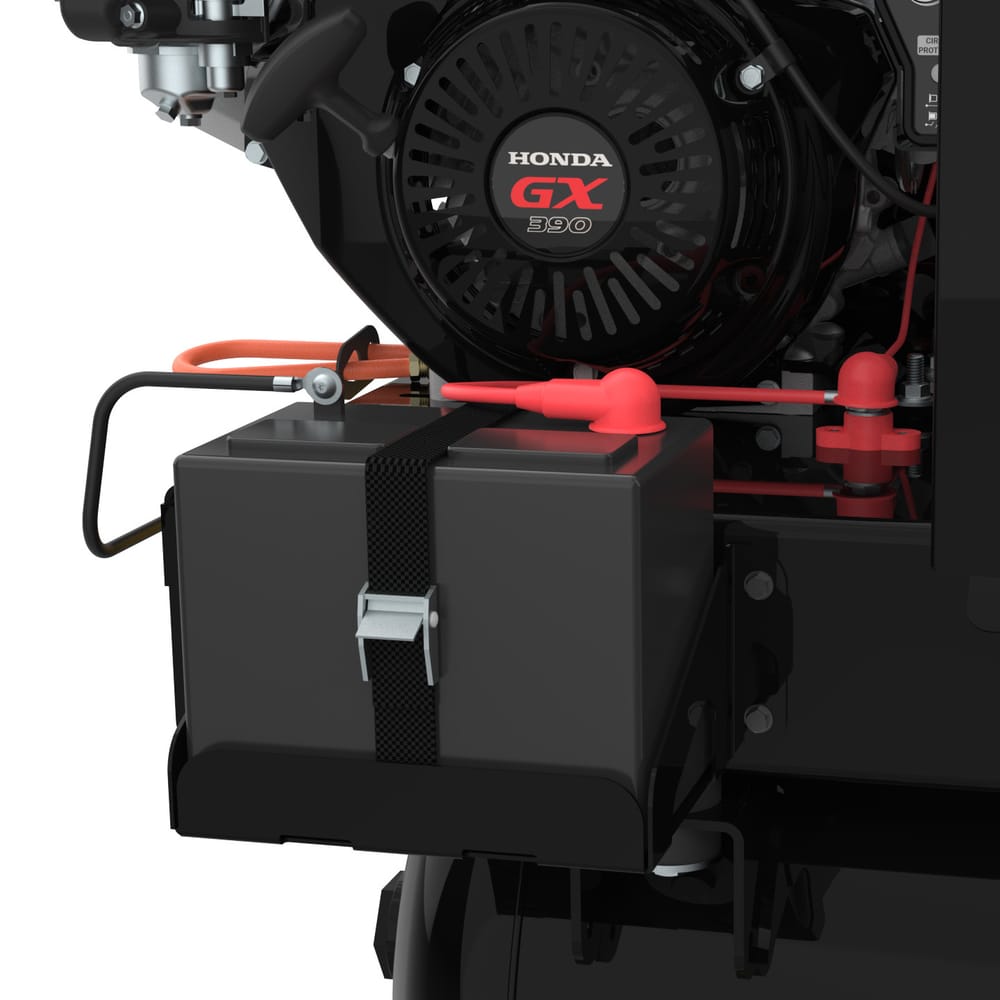

Heavy duty Honda GX390 OHV gas engine
Truck mount style tank
30 gallon ASME
175 PSI max pressure
13.6 SCFM @ 100 PSI
13.3 SCFM @ 175 PSI
1/4" (2) air outlet

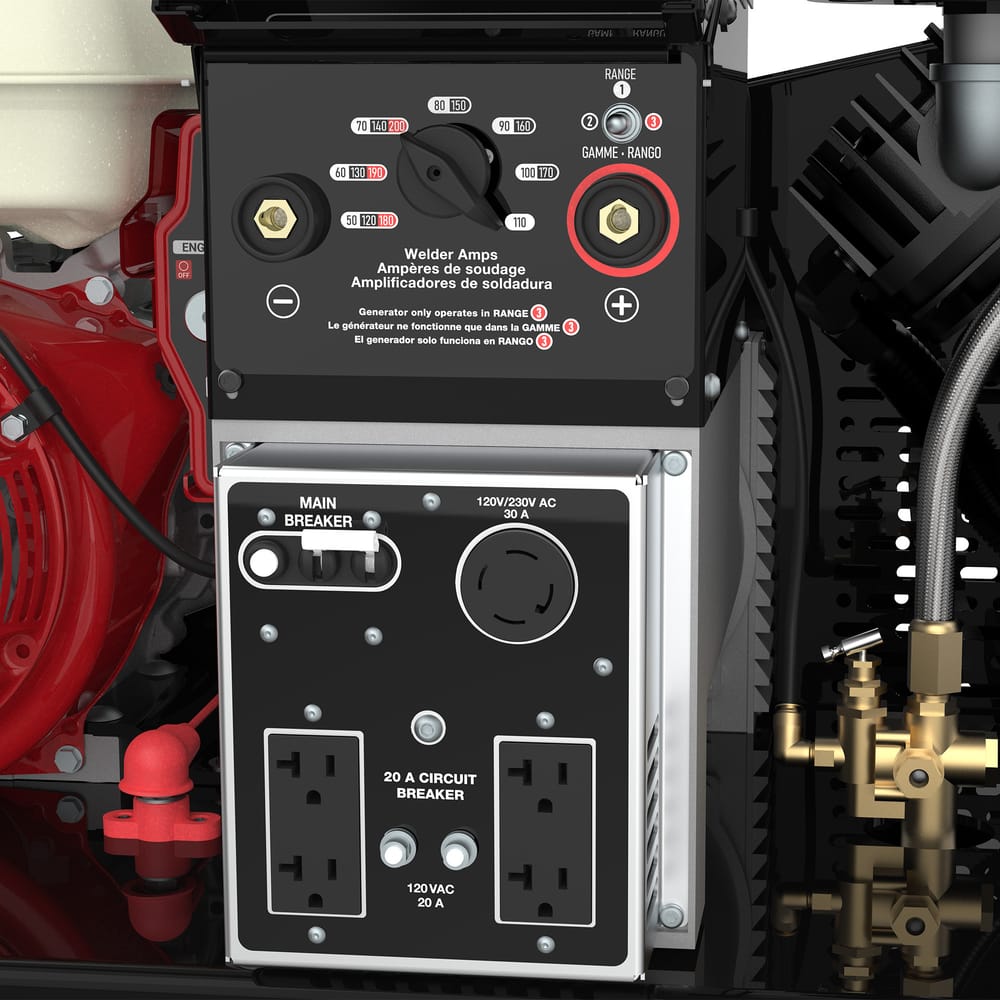

5,500 continuous watts / 6,050 surge watts
120V (4) AC power receptacles
240V (1) AC power receptacle

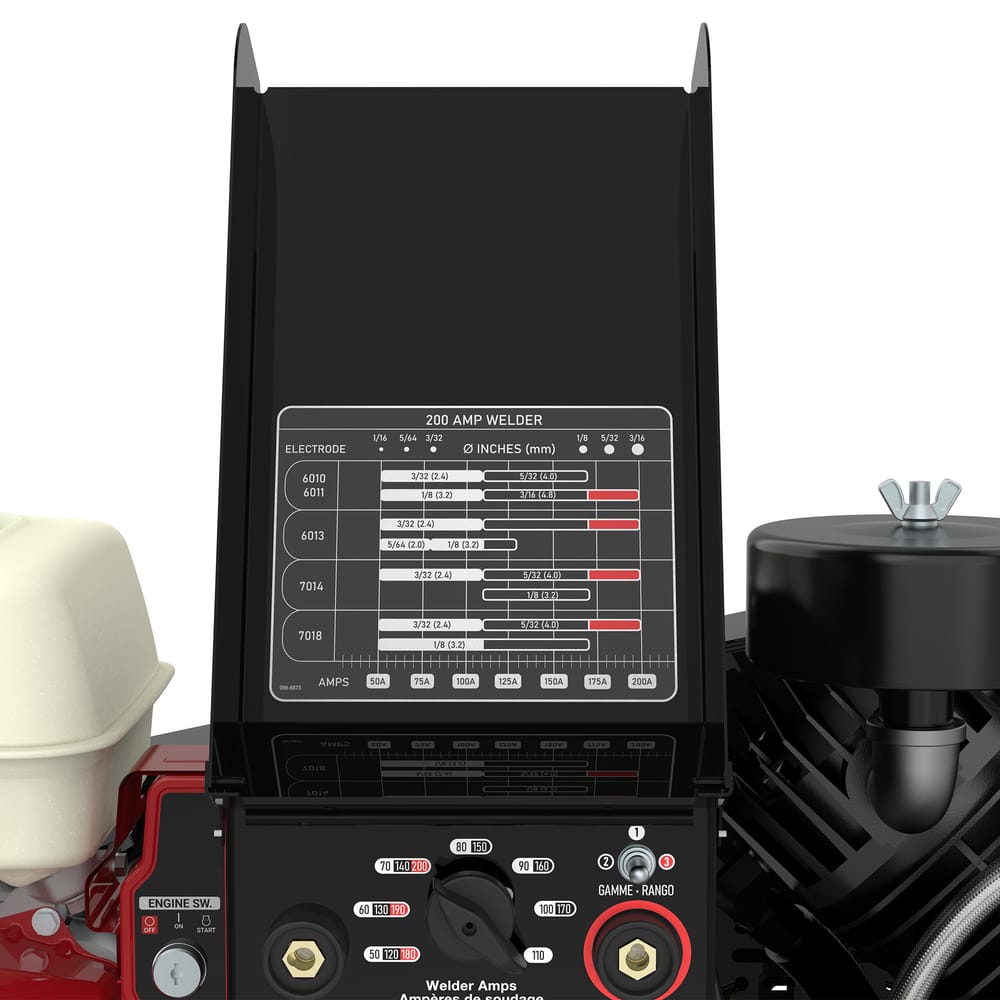

50-200 amp max power
1/2" max weld steel thickness
60% duty cycle @ 180A / 100% duty cycle @ 150A
| Dimensions | 58 × 32 × 52.3 in |
|---|---|
| Color | Black |
